reTraining

Take a base model you already have, and make it measurably better with footage you already have.

The Open-Source, Self-Hosted Vision Pipeline to Turn Raw Industrial CCTV into Production-Grade YOLO Object Detectors & Line Counters.



⚡ Quickstart · 🏗️ Architecture · 🖼️ Visual UI Tour · 🎥 Counting Engine · ⚙️ Configuration · 📚 Documentation · 🔧 Troubleshooting

Click diagram to view 4K UHD resolution. Scalable vector version available at docs/diagram-alur.svg.

---

💡 Why reTraining?

Deploying object detection models in industrial environments (manufacturing, logistics, agricultural feedmills, conveyor belts) often hits a painful bottleneck: general base models fail on domain-specific edge cases, while building manual labeling pipelines from scratch is slow and expensive.

reTraining provides a self-contained, enterprise-grade active learning platform designed to run directly on your edge server or GPU workstation:

1. Ingest Raw CCTV Footage: Stream directly from continuous 24/7 video archives without re-encoding or modifying the underlying storage.
2. Zero-Shot Foundation Auto-Labeling: Leverage Meta's Segment Anything Model 3 (SAM3) with natural language text prompts and visual exemplars to annotate thousands of frames in minutes.
3. Roboflow-Grade Review Studio: Sub-second keyboard navigation, instant class switching, click-assist segmentation, and high-density visual triage crop grids.
4. Statistical Triage & Data Prep: Filter bounding box outliers by area, aspect ratio, and confidence score without discarding valid image frames.
5. Immutable Dataset Freezing & Stable Val Splits: Guarantee reproducible benchmarks with deterministic SHA-1 validation sets that never shift across retraining runs.
6. Hardware-Aware Continuous Fine-Tuning: Auto-detect host GPU VRAM, fine-tune Ultralytics YOLO11 models, and evaluate base vs. fine-tuned model performance side-by-side.
7. Live Production Counting & Benchmarks: Real-time RTSP/WHEP live inference with ByteTrack line-crossing counters, evaluated against verified ground truth physical counts at 146 FPS.

---

⚡ Quickstart

Prerequisites

• Host OS: Linux (Ubuntu 22.04+ recommended) or Windows with WSL2.
• GPU Acceleration: NVIDIA GPU with CUDA 12.4+ and NVIDIA Container Toolkit (Docker Engine 27+ CDI support).
• HuggingFace Account: Gated model access granted for facebook/sam3 with a valid user access token (HF_TOKEN).
• Video Storage: Directory of CCTV footage structured as <date>/<batch>.mp4 (or let the app mount ./data/archive).

---

Option 1: Docker Compose (Production Standard)

Launch the entire stack with a single command. The startup script automatically inspects the host hardware, generates Container Device Interface (CDI) specs for your NVIDIA GPU, and starts both backend and frontend containers.

# 1. Clone the repository
git clone git@github.com:fhanyuh/reTraining.git
cd reTraining

# 2. Configure environment credentials
cp .env.example .env
# Edit .env and paste your HuggingFace user access token:
# HF_TOKEN=hf_xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

# 3. Launch with automated GPU / CDI detection
chmod +x start.sh
./start.sh

Alternative direct Docker Compose launch:

docker compose up -d --build

Access Points:

• 🌐 Web Studio UI: http://localhost:9000
• 📑 Interactive REST API Docs: http://localhost:9010/docs
• 🩺 Health & GPU Telemetry Endpoint: http://localhost:9010/api/health

Verify system health and GPU VRAM availability:

curl http://localhost:9010/api/health

{
  "device": "cuda",
  "gpu": "NVIDIA GeForce RTX 5080 Laptop GPU",
  "vram_free_gb": 14.91,
  "sam3_ready": true,
  "ffmpeg": true,
  "hf_token": true,
  "db": true
}

Important

The initial SAM3 auto-annotation job automatically downloads the ~3.4 GB SAM3 checkpoint from HuggingFace into a persistent Docker named volume (hf-cache). Subsequent executions load the model into VRAM in ~12 seconds.

---

Option 2: Local Development (Bare-Metal / uv + Vite)

For core development and live debugging without Docker:

Requirements: Python 3.12+, Astral uv, Node.js 20+, FFmpeg.

# 1. Clone and setup environment
git clone git@github.com:fhanyuh/reTraining.git
cd reTraining
cp .env.example .env

# 2. Install backend dependencies and vendored SAM3 with uv
uv pip install -r requirements.txt
uv pip install -e ./sam3

# 3. Start FastAPI backend (Port 8000)
uv run uvicorn backend.main:app --host 0.0.0.0 --port 8000 --reload

# 4. In a separate terminal, install and start Vite frontend (Port 5173)
cd frontend
npm install
npm run dev -- --host 0.0.0.0 --port 5173

Note

The frontend dependencies are pinned to Vite 7 (vite: ^7.1.5) in frontend/package.json to prevent Rolldown native binding bus errors on Linux platforms.

---

🏗️ End-to-End Pipeline Architecture

The platform operates as a continuous closed-loop retraining pipeline divided into 7 distinct functional stages:

┌──────────────────────────────────────────────────────────────────────────────────────────────────┐
│                                 DATA RETRAINING & INFERENCE PIPELINE                             │
└──────────────────────────────────────────────────────────────────────────────────────────────────┘
  [1. Video Archive] ──▶ [2. Frame Slicing] ──▶ [3. SAM3 Auto-Label] ──▶ [4. Review & Exemplar]
       (CCTV/MP4)           (FFmpeg In/Out)       (Prompt Grounding)        (Click-Assist Canvas)
                                                                                     │
  [7. Live Counter]  ◀── [6. YOLO11 Train]  ◀── [5. Immutable Split] ◀── [4. Triage & Filter]
     (WHEP / RTSP)          (Auto VRAM)           (Stable Train/Val)         (Outlier Purge)

1. Video Archive & Shift Slicing: Raw CCTV recordings are indexed into 24-hour operational work shifts (06:00 to 05:59 next morning). Sub-second timeline in/out trimming extracts high-resolution frame sequences with configurable FPS rates via asynchronous FFmpeg queues.
2. SAM3 Foundation Auto-Labeling: Meta SAM3 zero-shot open-vocabulary grounding generates candidate bounding boxes and segmentation masks from natural language descriptions (e.g. "white sack of feed on conveyor").
3. Interactive Review Studio: Operators review candidate annotations on a Roboflow-grade canvas with single-keystroke approvals, box adjustments, click-assist segmentation, and visual prompt exemplar refinement.
4. Statistical Triage & Quality Outliers: Interactive 2D scatter plots (Box Area vs. Confidence Score) and high-density crop grids allow rapid isolation and pruning of false positives without discarding valid frames.
5. Immutable Dataset Compilation: Filtered batches are merged into versioned datasets (v1, v2, v3) with deterministic SHA-1 validation hashing, guaranteeing that validation images remain permanently locked across iterations.
6. Hardware-Aware YOLO Retraining: Hyperparameters and batch sizes auto-scale based on detected GPU VRAM. The system fine-tunes Ultralytics YOLO11, benchmarks old vs. new models on the identical validation set, and displays signed metric deltas (\Delta\text{mAP50}, \Delta\text{Precision}, \Delta\text{Recall}).
7. Counting Accuracy Benchmark & Live Inference: Real-time production inference evaluates live RTSP/WHEP video streams with ByteTrack trajectory tracking and upper-edge tripwire counters, benchmarking against hand-verified physical ground truth logs at 146 FPS.

---

🖼️ Visual UI Tour & Feature Gallery

Explore the 6 core pipeline phases across all 11 primary user screens and modal workflows.

---

Phase 1: Video Ingest, Shift Cycles & Frame Sampling

1.1 Project Workspace & Setup — Multi-project isolation and class locking

Figure 1.1: Projects Dashboard showing active projects, base models, class taxonomies, and dataset stats.

Attribute	Specification
🎯 Purpose	Central management hub for all isolated computer vision projects.
⚡ Key Capabilities	View base model architecture, active class tags, total extracted batches, and dataset snapshots at a glance.
💡 Invariant	Projects maintain strictly isolated database records, class lists, and filesystem storage roots under data/projects/<slug>/.

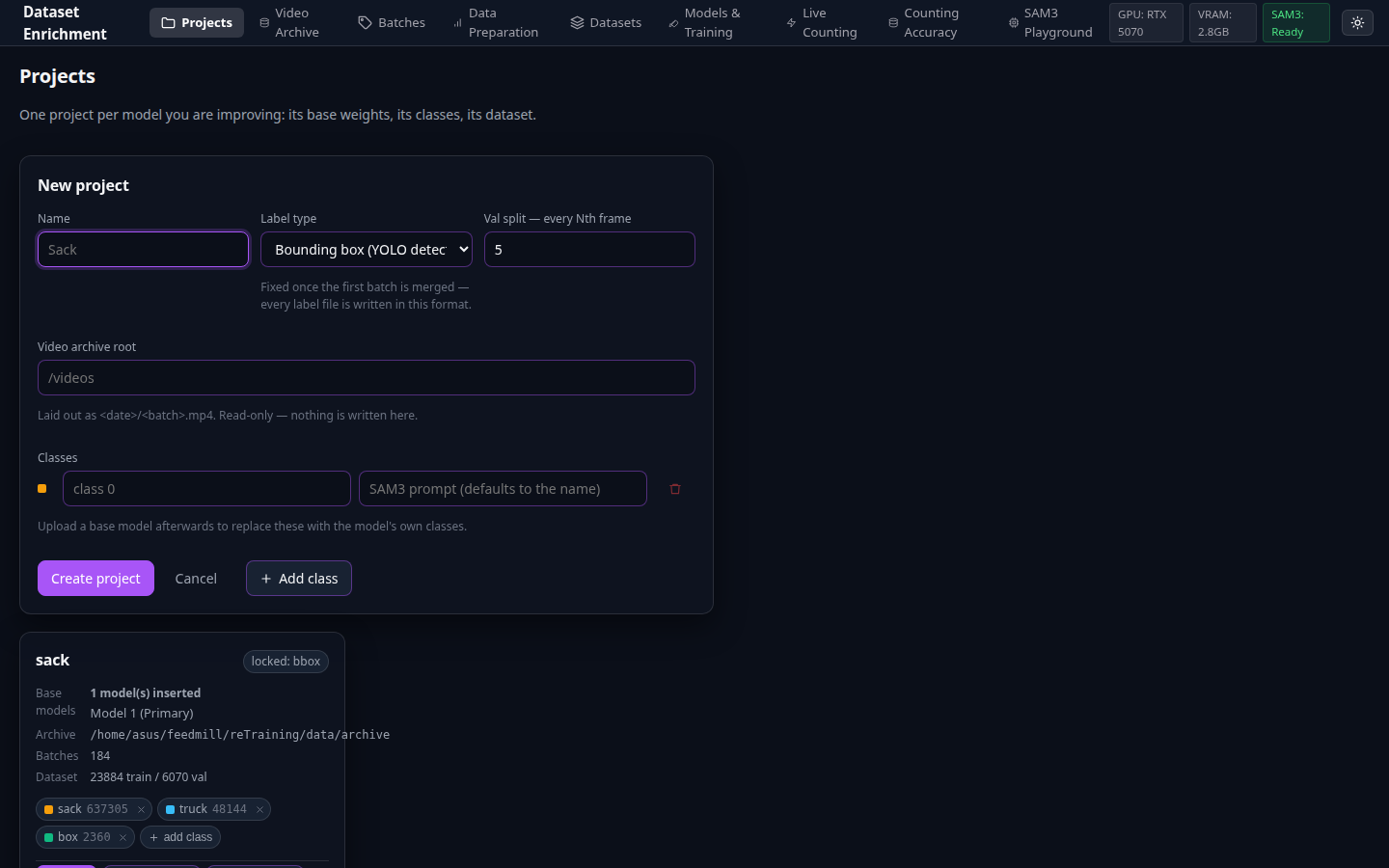

Figure 1.2: Project Creation dialog with base model checkpoint upload and automatic class extraction.

Attribute	Specification
🎯 Purpose	Initialize a new project with locked class names and base model weights.
⚡ Key Capabilities	Upload an existing YOLO .pt checkpoint to automatically extract its class taxonomy, or define custom classes and start fine-tuning from yolo11n.pt.
💡 Invariant	Base model classes are permanently locked to the project to prevent label drift between training iterations.

1.2 24-Hour Operational Shift Archive — Cycle grouping that crosses midnight

Figure 1.3: Video Archive grouping recordings into 24-hour operational shifts (06:00 to 05:59 next morning).

Attribute	Specification
🎯 Purpose	Browse raw CCTV recordings grouped by operational work shifts rather than arbitrary calendar folders.
⚡ Key Capabilities	Reads camera burned-in OCR timestamps and sidecar .json metadata to assign recordings accurately across midnight boundaries.
💡 Invariant	The video archive is mounted strictly read-only (:ro). Nothing is ever modified, renamed, or deleted in the user's video repository.

1.3 Video Trim & Frame Extractor — Sub-second timeline scrubbing and sampling

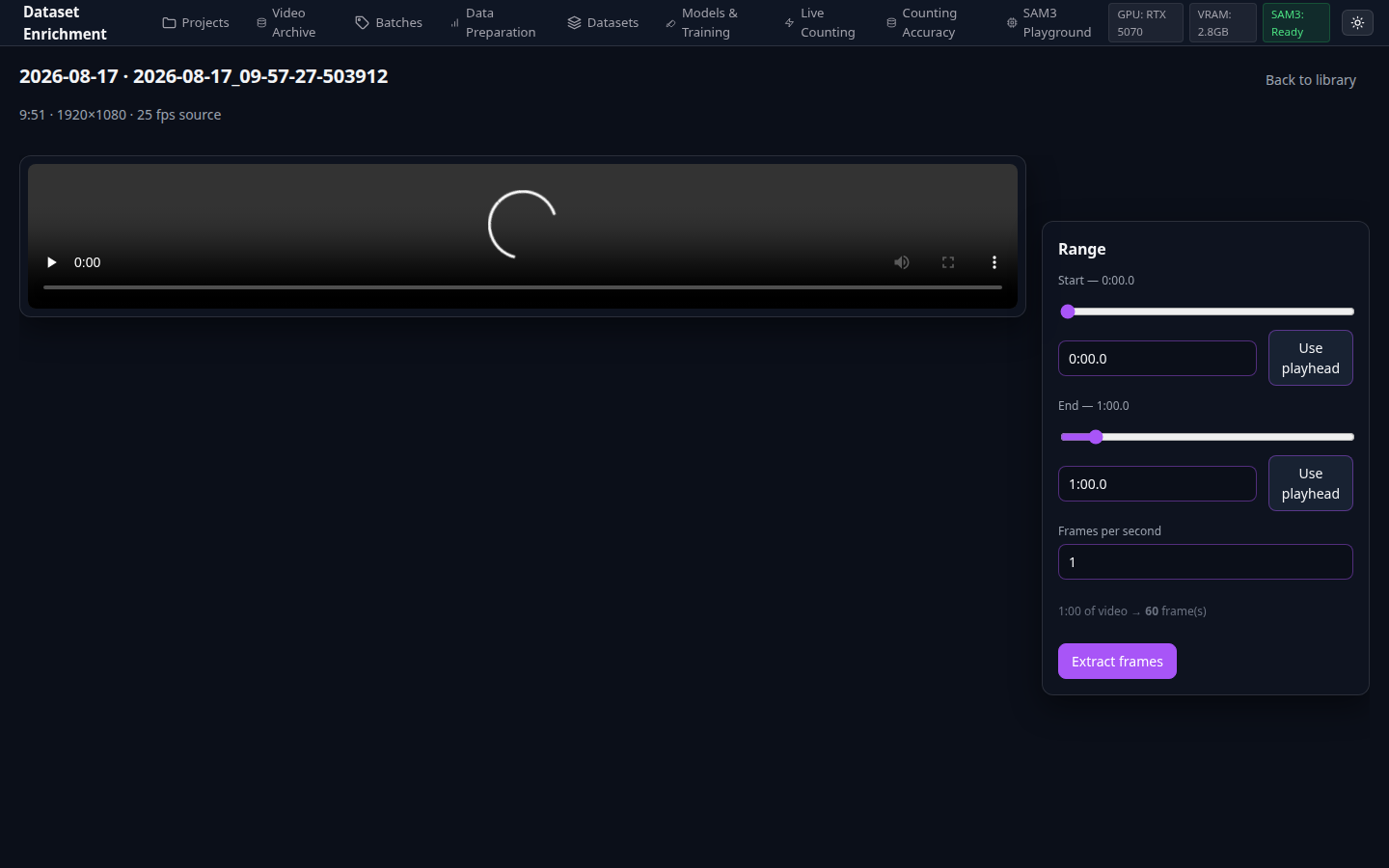

Figure 1.4: Video Trim interface with timeline range sliders and real-time frame calculation.

Attribute	Specification
🎯 Purpose	Select active truck loading ranges and configure extraction frame rates.
⚡ Key Capabilities	Interactive in/out timeline markers, extraction FPS slider (0.5 – 2.0 FPS), real-time output frame counter, and background FFmpeg queueing.
💡 Invariant	Extraction runs asynchronously in the background queue; frames are losslessly sampled into data/projects/<slug>/batches/<id>/frames/.

---

Phase 2: SAM3 Zero-Shot Auto-Labeling Engine

2.1 Batch Management & Mass Auto-Annotation — High-throughput zero-shot grounding

Figure 2.1: Batch Management table with batch status badges and bulk action triggers.

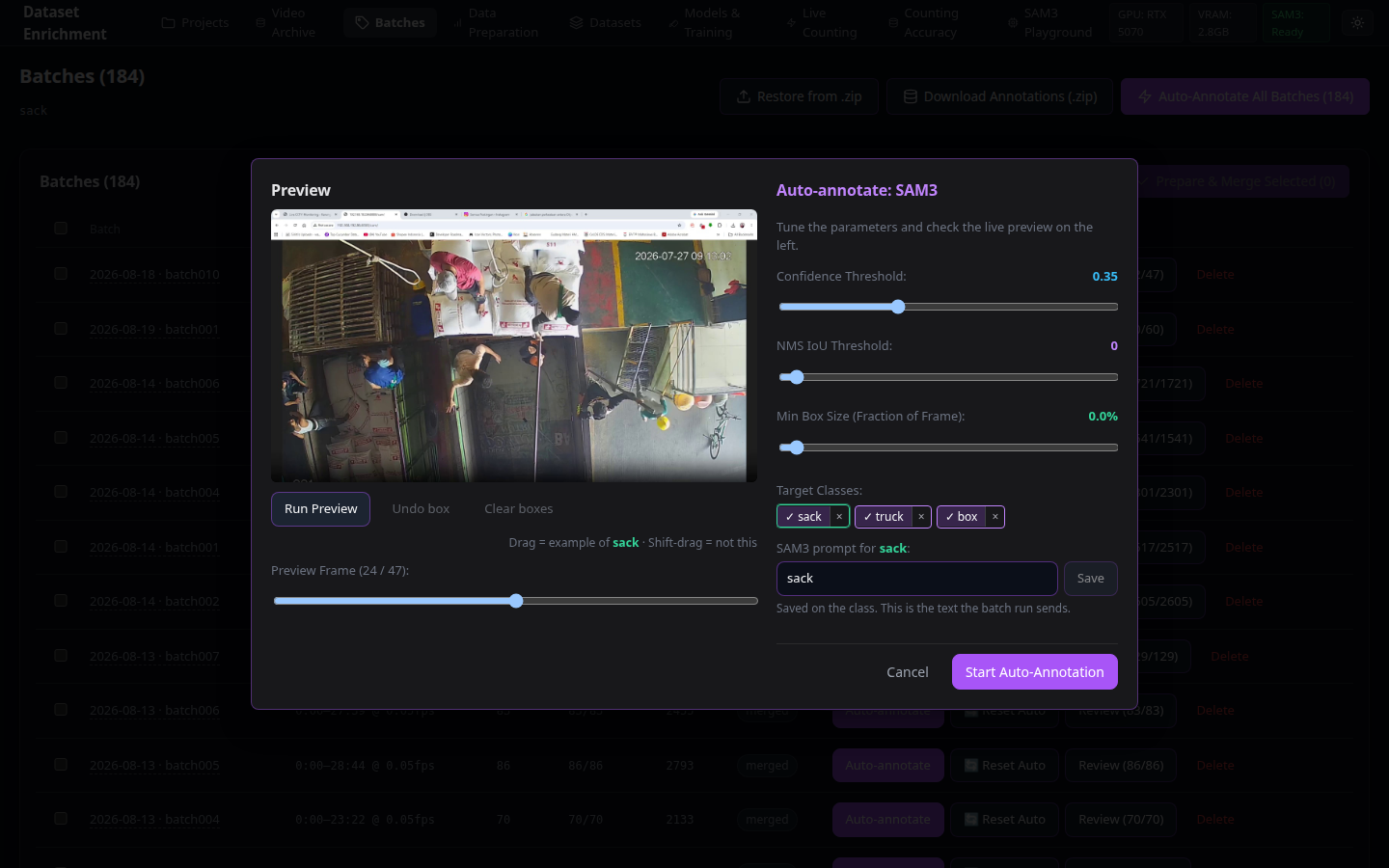

Figure 2.2: Single-batch SAM3 auto-annotation configuration with natural language text prompts.

Figure 2.3: Mass Auto-Annotate dialog for enqueuing thousands of frames across multiple batches.

Attribute	Specification
🎯 Purpose	Orchestrate Segment Anything Model 3 (SAM3) text-prompted auto-annotation across single or bulk batches.
⚡ Key Capabilities	Multi-prompt zero-shot grounding, adjustable confidence thresholds, box expansion margin, and background job queueing with VRAM singleton management.
💡 Invariant	One set_image per frame: SAM3 runs its heavy vision backbone once per image and re-runs only the lightweight grounding head across multiple prompts, ensuring maximum inference throughput.

2.2 SAM3 Interactive Sandbox — Standalone prompt engineering playground

Figure 2.4: SAM3 Interactive Playground for zero-shot text prompting and point prompt testing.

Attribute	Specification
🎯 Purpose	Interactive sandbox for testing text prompts, positive/negative point clicks, and mask segmentation before launching large auto-annotation jobs.
⚡ Key Capabilities	Real-time mask rendering, multi-prompt layer toggles, point click prompt refinement, and raw JSON detection inspector.

---

Phase 3: High-Throughput Annotation Studio & Triage

3.1 Roboflow-Grade Annotation Canvas & Quick Reclass — Sub-second keyboard navigation

Figure 3.1: Annotation Review Canvas with bounding box editor, shape provenance badges, and hotkey controls.

Figure 3.2: Filmstrip thumbnail navigation and floating single-keystroke quick reclassification bar.

Key	Action		Key	Action
A	Approve frame		← →	Previous / next frame
X	Reject frame		U	Jump to next unreviewed
Del	Delete selected shape		1–9	Quick switch active class
S + Drag	SAM3-assisted box click		Drag	Add / move / resize bounding box

Attribute	Specification
🎯 Purpose	Fast, ergonomic manual review and refinement of auto-generated bounding boxes.
⚡ Key Capabilities	Single-key shortcuts, bottom thumbnail filmstrip with status indicators, and shape provenance tracking (SAM3, Manual, Base Model).
💡 Invariant	Approving frames does not merge them into a dataset. Approval merely qualifies frames for Data Prep; merging happens under frozen rules.

3.2 Visual Exemplar-Guided Prompting — Few-shot visual reference matching

Figure 3.3: Exemplar Pool Sidebar Panel for visual reference matching.

Attribute	Specification
🎯 Purpose	Store and utilize positive and negative visual crop exemplars to guide SAM3 zero-shot grounding on difficult textures or ambiguous sack designs.
⚡ Key Capabilities	Visual exemplar library, similarity threshold slider, 1-click exemplar addition from canvas bounding boxes.

---

Phase 4: Data Prep, Statistical Triage & Dataset Freezing

4.1 Statistical Triage & Quality Outlier Filtering — Filter bad boxes without losing full images

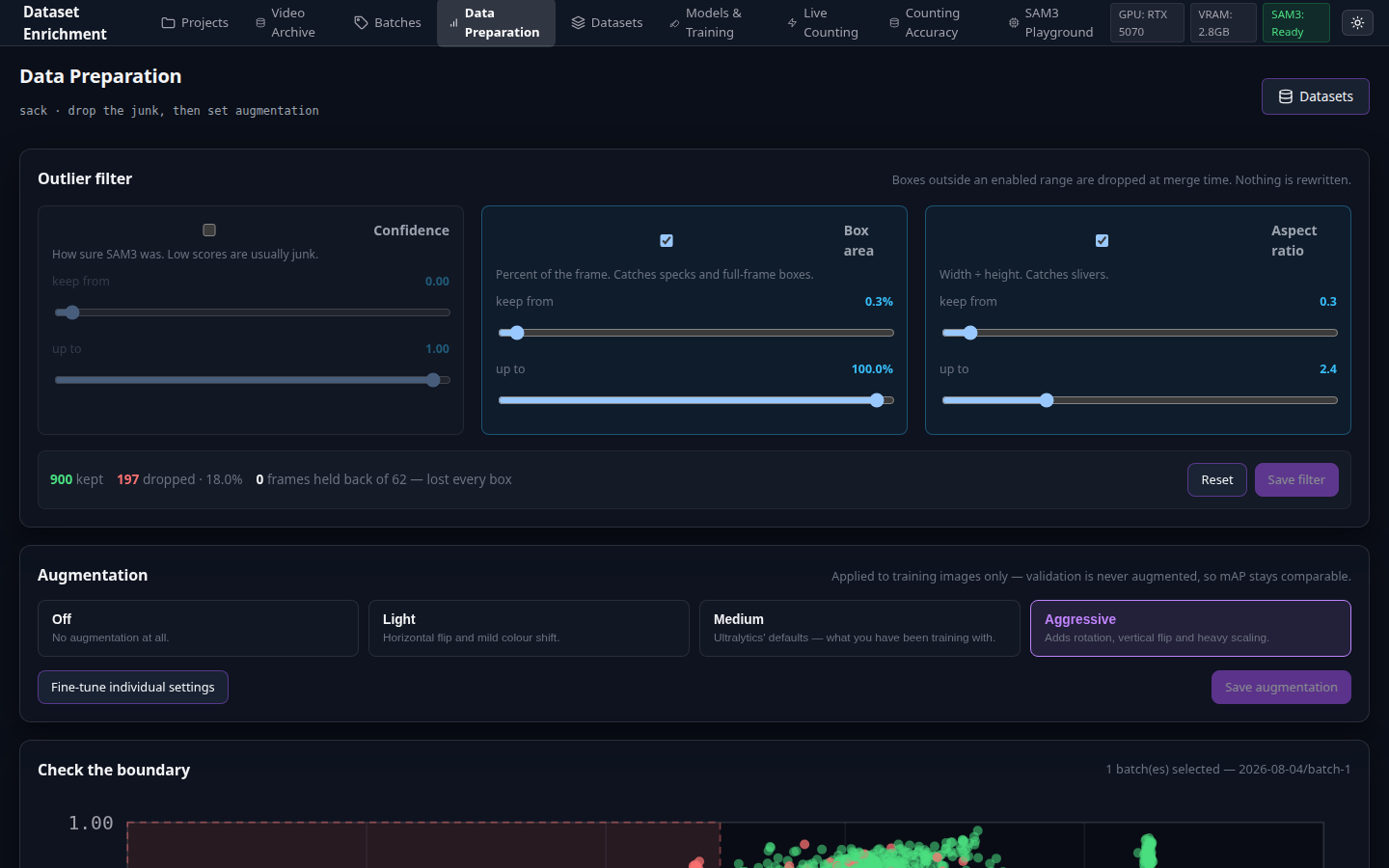

Figure 4.1: Quality filter sliders with live box and frame retention counters.

Figure 4.2: Interactive Scatter Plot (Score vs Area) for instant visual outlier cluster detection.

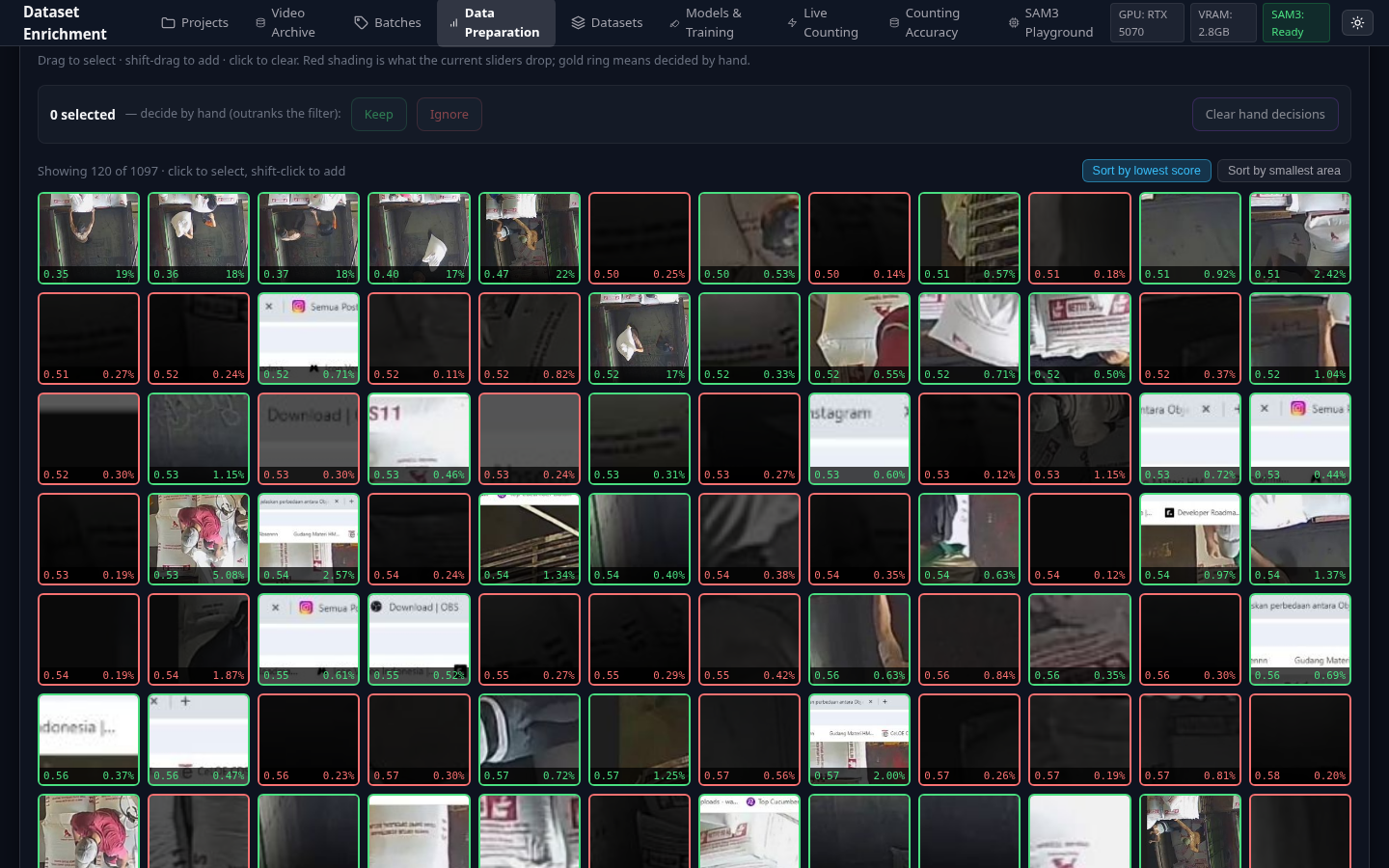

Figure 4.3: Triage Crop Grid for rapid bulk visual inspection and 1-click outlier removal.

Attribute	Specification
🎯 Purpose	Eliminate low-quality bounding boxes (partial crops, false positives, background noise) before dataset compilation.
⚡ Key Capabilities	Dual-handle range sliders (Confidence Score, Box Area, Aspect Ratio), interactive SVG scatter plot, high-density crop grid cards, and real-time retention telemetry.
💡 Invariant	Dropping an outlier bounding box leaves the frame in the dataset unless all boxes are dropped. Industrial conveyor frames contain ~44 objects; dropping whole frames discards 96% of good data to remove 10% of bad boxes.

4.2 Augmentation Pipeline & Dataset Freezing — Deterministic Stable Val Split

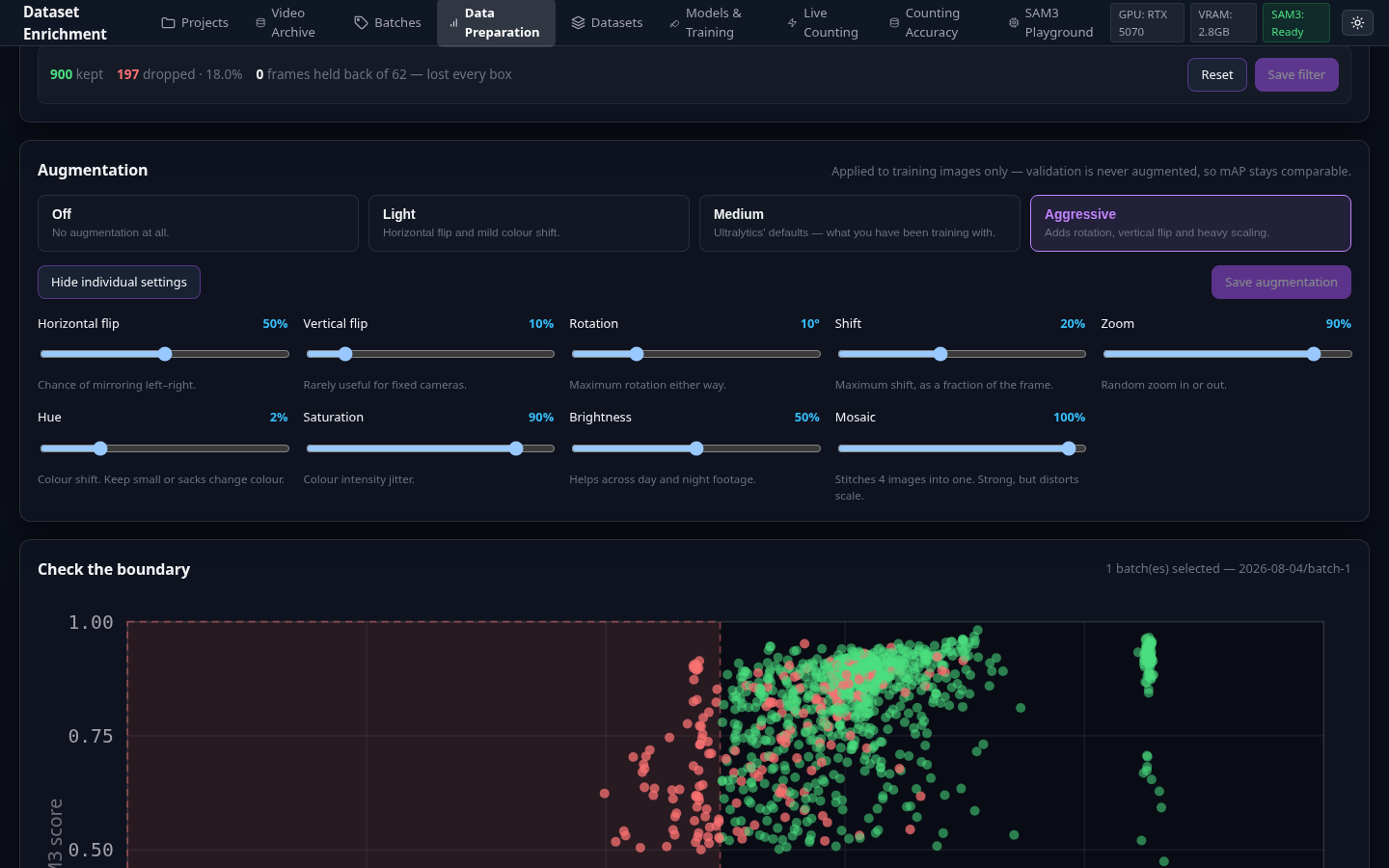

Figure 4.4: Albumentations training augmentation presets with real-time visual preview.

Figure 4.5: Dataset Freeze dialog enforcing deterministic SHA-1 Stable Val Split rules.

Attribute	Specification
🎯 Purpose	Apply synthetic vision augmentations and freeze the curated batch into an immutable, versioned training dataset.
⚡ Key Capabilities	HSV shift, brightness/contrast, rotation, blur, and mosaic controls; dataset destination selection; split ratio slider.
💡 Invariant	Stable Validation Split: Validation assignment is derived deterministically from the frame's SHA-1 hash. Once a frame lands in val, it remains in val forever across all future versions.

---

Phase 5: YOLO Retraining & Live Training Progress

5.1 Dataset Repository & YOLO Fine-Tuning — Hardware-aware parameter tuning

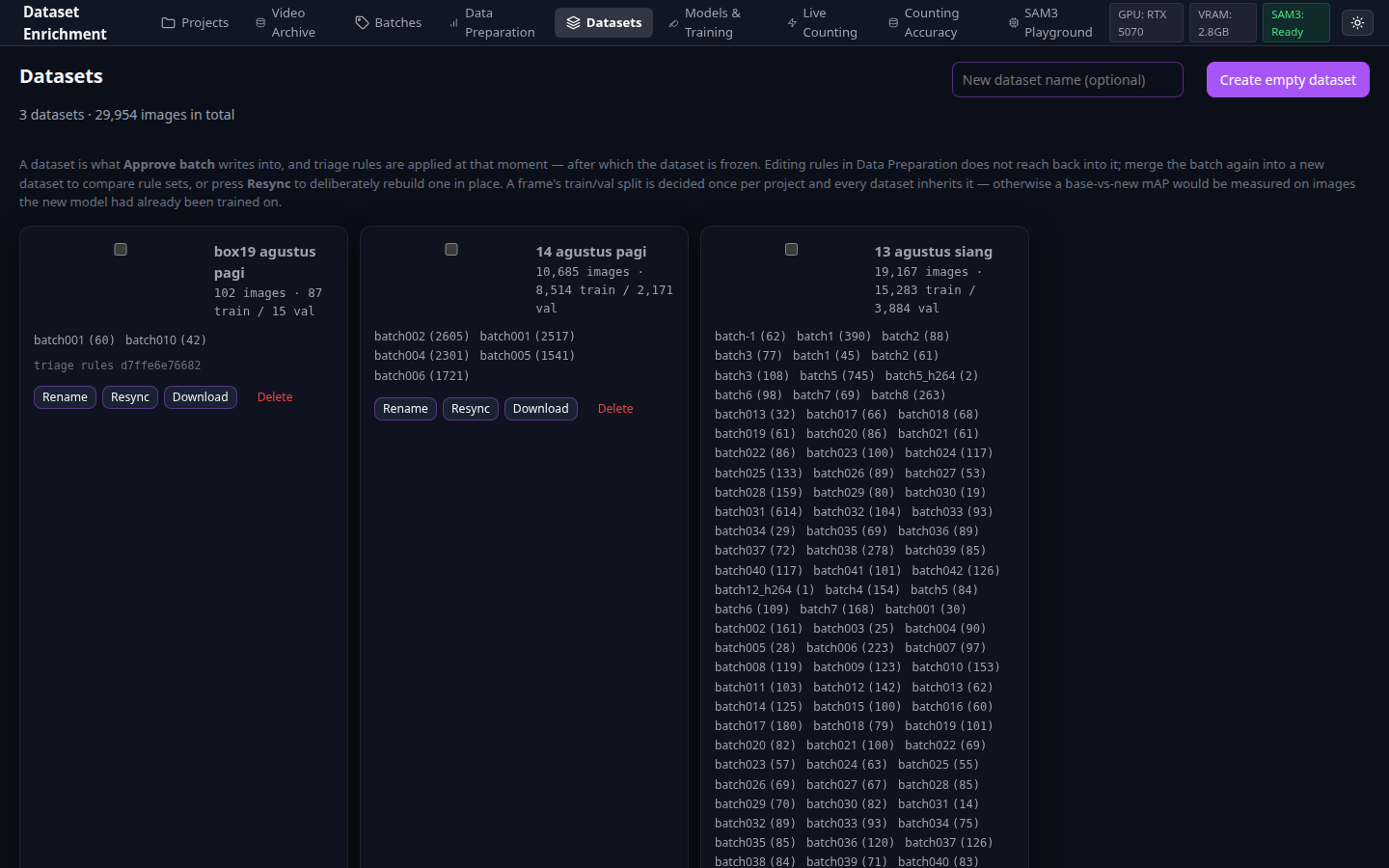

Figure 5.1: Master Dataset repository showing version history, train/val splits, and export tools.

Figure 5.2: YOLO fine-tuning parameter setup with hardware detection and model history.

Figure 5.3: Real-time training telemetry with live loss curves, mAP metrics, and stdout logs.

Attribute	Specification
🎯 Purpose	Train Ultralytics YOLO11 object detection models with automated hardware tuning and live telemetry.
⚡ Key Capabilities	Architecture selection (YOLO11n/s/m/l/x), auto-calculated batch sizes based on free GPU VRAM, real-time loss sparklines (box_loss, cls_loss, dfl_loss), epoch progress bars, and streaming logs.
💡 Invariant	Side-by-side Validation: After training, both the base model and fine-tuned model are benchmarked on the identical validation set, displaying signed metric deltas (\Delta\text{mAP50}, \Delta\text{precision}, \Delta\text{recall}).

---

Phase 6: Counting Accuracy Benchmark & Live Production Inference

6.1 Counting Benchmark Matrix & Live Line Counter — 146 FPS verification

Figure 6.1: Counting Accuracy Benchmark Matrix comparing multi-model predictions against Ground Truth.

Figure 6.2: Real-time CCTV live counting interface with interactive tripwire line and ByteTrack trails.

Attribute	Specification
🎯 Purpose	Verify model counting precision against physical ground truth records and run real-time production counting.
⚡ Key Capabilities	Headless counting benchmark running at 146 FPS, signed delta badges (+2, -1, 0), draggable tripwire counting line, ByteTrack trajectory tracking, and per-track JSONL diagnostic logs.
💡 Invariant	Counting tripwire on upper edge (y_1): Tripwire evaluates the top edge coordinate of the sack bounding box rather than the center or bottom, preventing miscounts caused by physical sack deformation as it drops onto the conveyor.

---

🎥 Production Counting Engine

The counting engine is designed for industrial conveyor belts with low or unstable camera frame rates. It eliminates reliance on instantaneous line-crossing frames by evaluating historical bounding box trajectories.

stateDiagram-v2
    [*] --> UNKNOWN
    UNKNOWN --> ABOVE: y1 coordinate above counting band
    UNKNOWN --> BELOW: Born below band (ghost detection — rejected)
    ABOVE --> COUNTED: Trajectory crosses band + travelled entry_travel_min
    COUNTED --> ABOVE: Sustained frames above line (genuine reload)

Multi-Layer Counter Safeguards

Guard Layer	Rule Specification	Failure Mode Prevented
Layer 1: Entry Origin Guard	Object must be observed above the counting band prior to crossing.	Prevents counting items that spawn directly inside the truck or loading chute.
Layer 2: Trajectory Distance	Object must travel a minimum distance (entry_travel_min) across consecutive frames.	Discards transient noise and flickering phantom boxes.
Layer 3: Track Hand-Off	When a track is occluded, its movement history is parked for newborn tracks within handoff_radius.	Prevents tracker ID switches from dropping or duplicating counts.
Layer 4: Directional Monotonicity	Strict single count per trajectory direction with verdict locked to the final confirmed motion.	Prevents double-counting during momentary conveyor pauses.

---

⚙️ Configuration & Environment Matrix

All configuration parameters are defined via environment variables in .env:

Variable	Type	Default Value	Scope	Description
HF_TOKEN	String	(Required)	Backend / Docker	HuggingFace user access token with authorized permissions to download gated facebook/sam3 weights.
VIDEO_ARCHIVE_HOST	Path	./data/archive	Docker Compose	Host filesystem directory path containing raw CCTV video recordings (structured as <date>/<batch>.mp4). Relative paths resolve against the directory ./start.sh runs from. Mounted read-write; written only by user-initiated upload / date-folder creation (REQ-178), nothing else.
APP_DATA_DIR	Path	./data (or /data in Docker)	Backend	Base directory for application persistent data, SQLite database (app.db), projects, extracted frames, datasets, and model weights.
VIDEO_ARCHIVE	Path	/videos (or data/archive)	Backend	Internal container/local filesystem path where the video archive is browsed by FastAPI.
WEB_PORT	Integer	9000	Docker / Nginx	Host HTTP port mapped to the Nginx frontend web UI.
API_PORT	Integer	9010	Docker / FastAPI	Host HTTP port mapped to the FastAPI backend API.
CORS_ORIGINS	String	http://localhost:5173,http://localhost:9000,http://localhost:9010	FastAPI Backend	Comma-separated list of allowed origins for Cross-Origin Resource Sharing.
API_URL	URL	http://localhost:8000	Vite Dev Server	Backend target endpoint for Vite development proxy (frontend/vite.config.js).
MEDIAMTX_WHEP_PATH	String	/whep	Backend Live Count	WHEP WebRTC endpoint path on the streaming media server (MediaMTX).
MEDIAMTX_RTSP_PORT	Integer	8554	Backend Live Count	RTSP stream port used to translate WHEP browser streams into backend video processing feeds.
RTSP_TRANSPORT	String	tcp	Backend Live Count	RTSP transport protocol (tcp or udp). TCP guarantees zero frame drop on industrial networks.
PLAYBACK_URL	URL	http://192.168.192.96:9996/get	Recorder Service	MediaMTX recording playback API endpoint for automated CCTV session extraction.
PLAYBACK_PATH	String	cam	Recorder Service	Stream channel identifier on the MediaMTX playback server.
AUTO_PULL_INTERVAL	Integer	30	Auto-Pull Script	Polling frequency in seconds for automated Git repository synchronization (scripts/auto_pull.py).
WEBHOOK_PORT	Integer	9000	Webhook Daemon	Port for the GitHub push webhook listener daemon (scripts/webhook.py).
WEBHOOK_SECRET	String	""	Webhook Daemon	Shared secret key for validating GitHub webhook HMAC-SHA256 signatures.

---

🗂️ Persistent Data & Storage Layout

All application state, relational metadata, and trained weights live in data/:

data/
├── app.db                                  # SQLite metadata database with Write-Ahead Logging (WAL)
├── archive/<date>/batchNNN.mp4             # Raw CCTV video recordings (Mounted strictly read-only)
│                  batchNNN.json            # Sidecar metadata with true server timestamp
├── recorder.log                            # 24/7 background recorder daemon log
├── live-count/session-*.jsonl              # Diagnostic per-track trajectory and crossing logs
└── projects/<slug>/                        # Isolated project workspace
    ├── base/model.pt                       # Project base model weights and locked class taxonomy
    ├── batches/<id>/frames/                # Losslessly extracted image frames from video slices
    ├── datasets/<id>/                      # Frozen Ultralytics YOLO formatted training datasets
    │   ├── images/{train,val}/             # Immutable frame images
    │   └── labels/{train,val}/             # YOLO format bounding box annotations (.txt)
    └── models/<n>/                         # Training runs (weights/best.pt, metrics.json, args.yaml)
                                            # Named: {arch}-{labelType}-{epochs}ep-{classNames}-{date}

---

⚙️ Background Job Worker & Mutex Locking

Heavy computational operations run through an asynchronous background worker (backend/jobs.py) with strict GPU mutex locking to prevent VRAM over-allocation:

Job Type	GPU Locked	Description
extract	—	Background FFmpeg extraction of video ranges into frame sequences.
autolabel	✅	Meta SAM3 zero-shot grounding across candidate frames (one set_image per image).
merge	—	Compiles reviewed batches into immutable dataset splits under frozen triage rules.
train	✅	Ultralytics YOLO11 fine-tuning followed by automated dual-model validation.
count	✅	Headless evaluation benchmark running archive videos at 146 FPS.
clock-scan	—	OCR extraction of camera burned-in timestamps.
truck-scan	✅	Batch inference check verifying the presence of target industrial objects.

---

📊 Metrics Integrity & Domain Invariants

1. Stable Validation Split: Validation assignment is determined deterministically by sha1(image_bytes) % 100 < val_ratio. Once a frame lands in the validation split, it remains in validation across all future dataset iterations. This prevents validation leak and ensures that rising mAP scores reflect genuine model improvements.
2. One set_image per Frame: SAM3 executes its heavy vision transformer backbone once per image. Multi-class text prompting evaluates the lightweight grounding head against cached backbone embeddings.
3. Outlier Filtering Preserves Frames: Dropping a bounding box during Data Prep removes only the bad annotation. The image frame remains in the dataset as long as at least one valid box persists.
4. Upper-Edge Coordinate Line Crossing (y_1): Tripwires evaluate the top edge coordinate of bounding boxes (y_1) rather than the centroid (y_c) or bottom edge (y_2), ensuring immunity to sack deformation upon conveyor impact.

---

📚 Documentation & Deep Dives

Comprehensive technical specifications, operational SOPs, and architecture diagrams are available in the docs/ directory:

Document	Format	Description	Action
Panduan Sistem Lengkap (Handover)	PDF (11 MB)	Publication-Grade Master User Guide & Technical Manual (Indonesian) with complete operational SOPs and embedded figures.	⬇️ Download PDF
Panduan Sistem Lengkap Source	FODT (11.8 MB)	Native LibreOffice Writer Flat XML editable source document.	⬇️ Download FODT
Panduan Sistem Lengkap Markdown	MD (68 KB)	Full Markdown transcript of the 14-chapter system manual.	📖 View MD
Architecture Flow Diagram (4K)	PNG (1.5 MB)	4K Ultra-HD raster export of the 8-stage end-to-end retraining pipeline.	⬇️ Download 4K
Architecture Flow Diagram (Vector)	SVG (34.6 KB)	Scalable vector graphic diagram for high-resolution display.	⬇️ Download SVG
Architecture Flow Diagram (Source)	FODG (24.8 KB)	Native LibreOffice Draw Flat XML editable source file.	⬇️ Download FODG
Entity Relationship Diagram (ERD)	MD (8.5 KB)	Relational database schema, foreign keys, indexes, and Mermaid ERD diagram.	📖 View ERD
System Requirements Specification	MD (23.6 KB)	Numbered technical requirements (REQ-001 through REQ-042).	📖 View Spec
System Design & Architecture	MD (22.7 KB)	Database schema, REST API contracts, disk layouts, and backend invariants.	📖 View Design
UI/UX Design Specification	MD (79.7 KB)	Dark theme design tokens, hotkey maps, and component specifications.	📖 View UI Spec
Ground Truth Benchmark Dataset	XLSX (586 KB)	Hand-verified physical conveyor bag counts across operational shifts.	⬇️ Download XLSX

---

🔧 Troubleshooting & FAQ

Deployment & GPU Acceleration

Symptom	Root Cause & Remediation
could not select device driver	NVIDIA Container Toolkit is missing or Docker Engine is older than CDI specifications. Run ./install_nvidia.sh or update Docker.
CUDA out of memory during training	Lower the batch size on the Models page or stop background jobs. SAM3 releases VRAM before training starts, but external processes may hold memory.
Changes to frontend or backend do not appear	Docker Compose caches container layers at build time. Run docker compose build backend frontend and hard-refresh your browser (Ctrl+Shift+R).
Job shows interrupted by server restart	The backend process stopped while a job was active. Jobs do not resume mid-epoch; simply re-trigger the job from the UI.

SAM3 Foundation Auto-Annotation

Symptom	Root Cause & Remediation
Job fails at Loading Model with HTTP 401	HuggingFace token is invalid or access to facebook/sam3 has not yet been approved.
SAM3 checkpoint download is slow	HuggingFace Xet transfer throttling. HF_HUB_DISABLE_XET=1 is enabled by default in docker-compose.yml to bypass this issue.
SAM3 generates inaccurate bounding boxes	Refine the natural language prompt with physical descriptors (e.g. "woven polypropylene sack with blue logo") or add visual crops to the Exemplar Pool.

Video Archive & Live Counting

Symptom	Root Cause & Remediation
Video file marked as unreadable	FFmpeg/FFprobe could not parse the video header. Run uv run python scripts/transcode_archive.py to re-mux into standard H.264 MP4.
Shift cycle shows fewer recordings than expected	Check if recordings crossed the 06:00 boundary. Clips recorded before 06:00 belong to the previous operational shift cycle.
Live Counting shows GPU busy	An active fine-tuning or auto-annotation job holds the GPU lock. The live counter waits 30 seconds before falling back to CPU or queuing.

---

🤝 Contributing & Engineering Guidelines

Development adheres strictly to the Chain of Truth methodology:

• Specifications First: Every feature must map directly to a numbered requirement in docs/requirements.md and architectural design in docs/design.md.
• Verified Deliverables: Tasks tracked in docs/tasks.md flip to [DONE] only after concrete end-to-end verification.
• Surgical Changes: Touch only code directly relevant to the feature. Adhere to the working rules in AGENTS.md.
• Package Manager: All backend dependencies are managed exclusively with Astral uv (requirements.txt).

---

📄 License

Distributed under the MIT License. See LICENSE for details.
